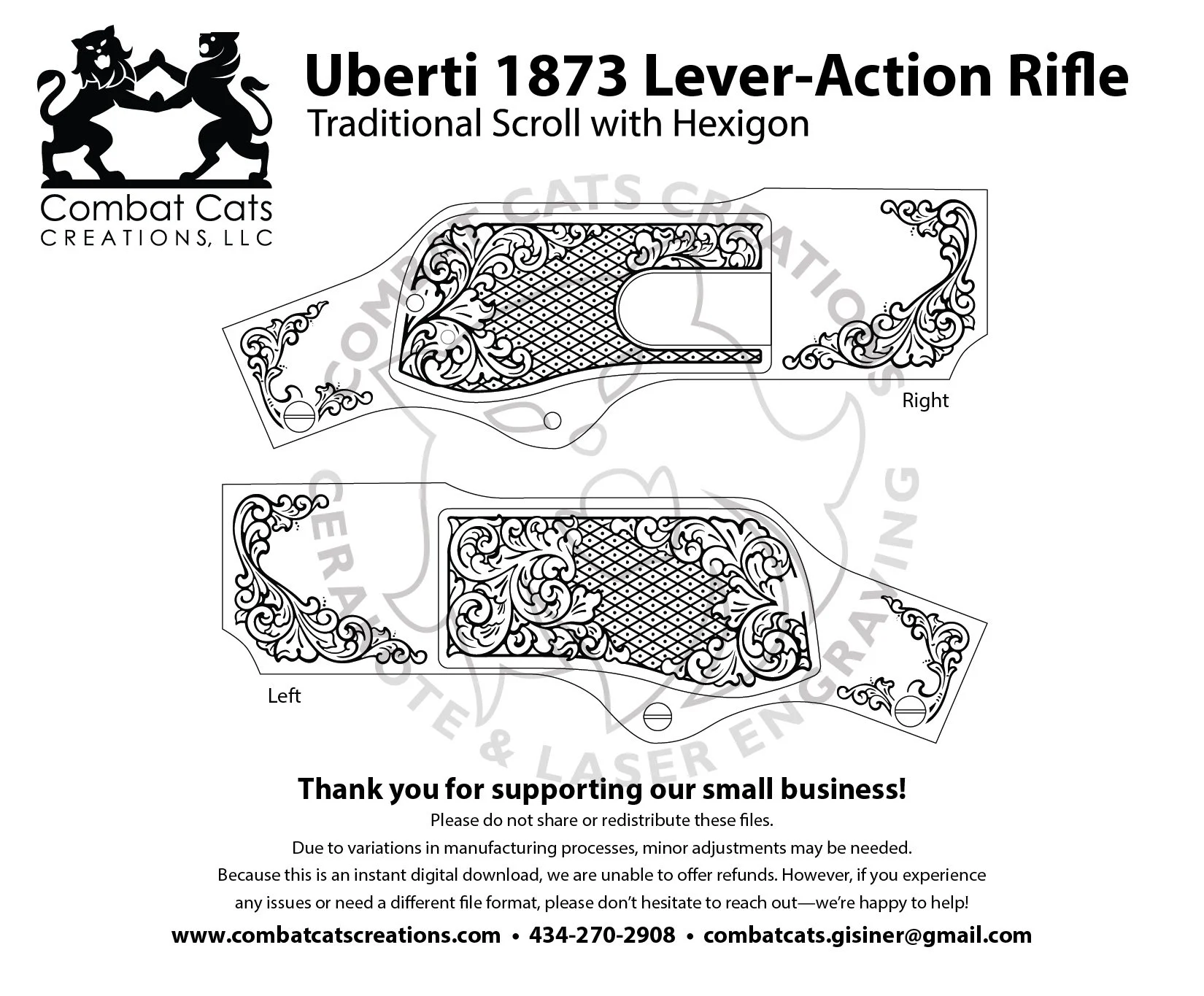

Left and Right Center Plates
Front and Rear Receiver Panels
IMPORTANT NOTE: This outline was fitted to Uberti Winchester 1873 rifle. Other manufacturers and variations will have minor differences that may require you to make adjustments to the outline.
Tested with EZcad2. Ready to open in EZcad, Inkscape, and Adobe Illustrator.
Formats included with download:
.AI, .SVG, .DXF, PDF
Download is a compressed ZIP file. To un-compress files, right click on ZIP folder, and select Extract All.
Please support our small business by not sharing the downloaded files.
We are unable to provide a refund for instant downloadable files. However, if you have any issues or need a different file format, please contact us.
